Fig. 5-5

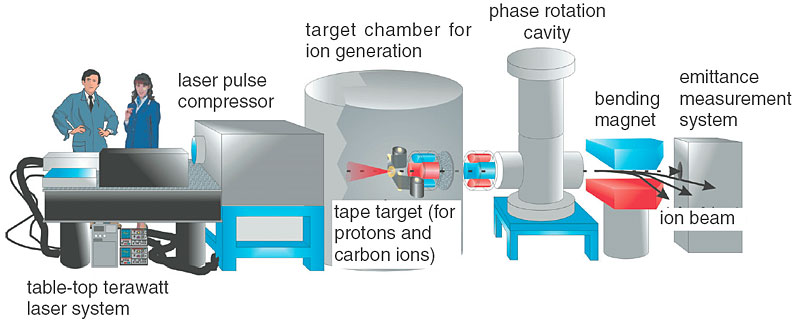

Schematic view of laser-driven ion source Ions such as protons or carbon ions produced at the laser irradiated tape target are transferred into the phase rotation device in which the ion energy distribution is compressed. The ions are then transferred into the bending magnet where ions having the desired energy component are selected. Finally, the quality of the ion beam is determined by the emittance measurement system.
