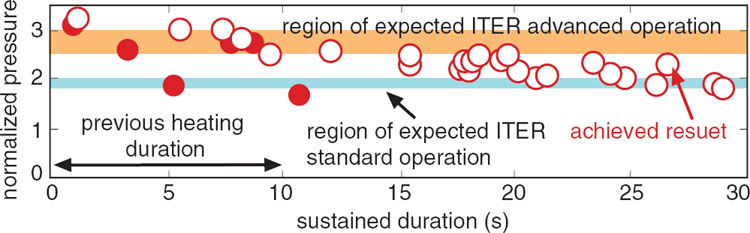

Fig. 2-6

Progress of normalized pressure and its sustained duration Closed circles indicate data obtained previously, while open circles indicate data obtained in 30 s heating. The blue region (1.8-2) indicates the ITER standard operation, while the orange region (2.5-3) indicates the advanced operation. Sustained duration of high normalized pressure, which is closer to the advanced operation is extended to a much longer duration.
